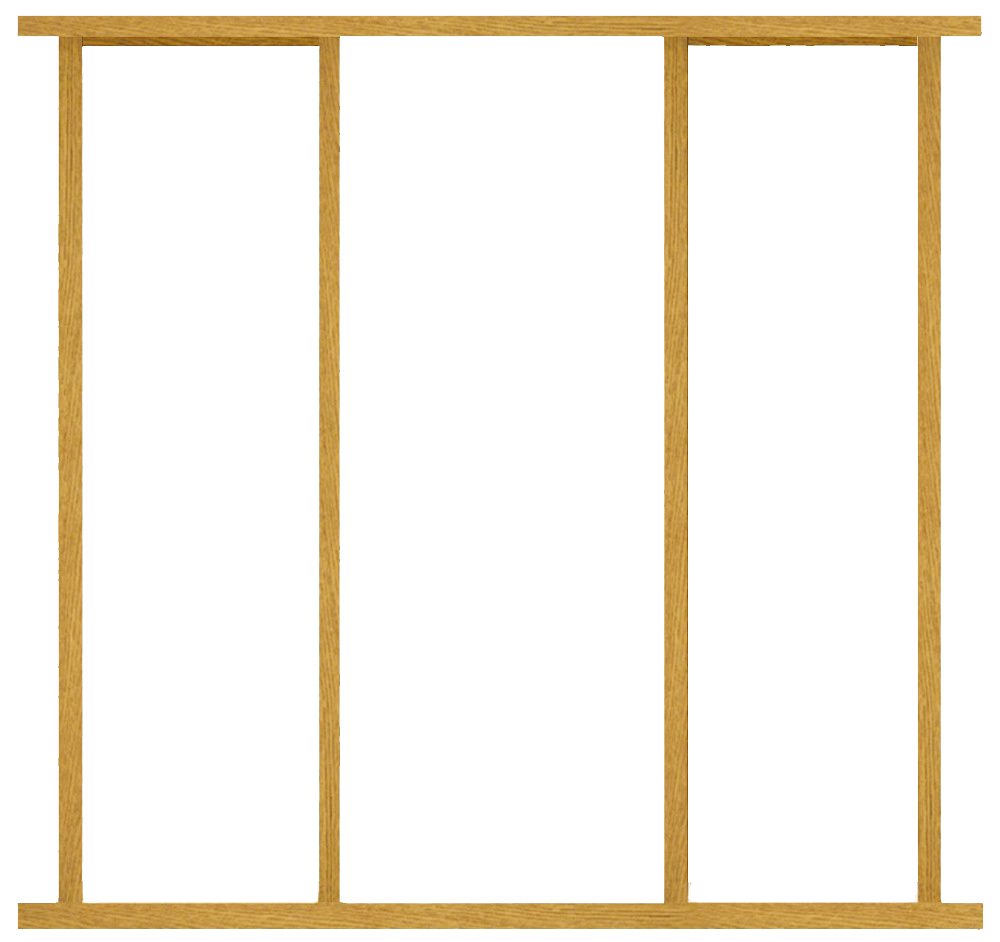

Adjustable Single Door Sidelight Oak Effect Frame Kit (mortice & tenon)

Adjustable Single Door Sidelight Oak Effect Frame Kit (mortice & tenon)
Click to enlarge

More images

Click to enlarge
Price (incl. 20% VAT): £329.00

Purchase

Description

External Oak Sidelight Frame Kit

  • Manufactured from Malaysian white Oak, which is similar in grain and tone to European or American Oak
  • Can be used with one or two Oak sidelights OR the frame can be directly glazed however you will need to source some larger beading. Sidelights can be any width up to a maximum of 23" (see overall frame dimensions below)
  • Mortice and tenonned for ease of assembly (flat packed)
  • Fully adjustable! This user-friendly frame allows the uprights to be fitted along any point across the head or cill
  • Supplied 'natural' so that finishing can be carried out to taste
  • Grooved to accept Aquamac weather strip (one included for door). If you wish to use the weather strip for the sidelights as well (usually customers use instead glazing tape and silicone) you will need to purchase additional packs

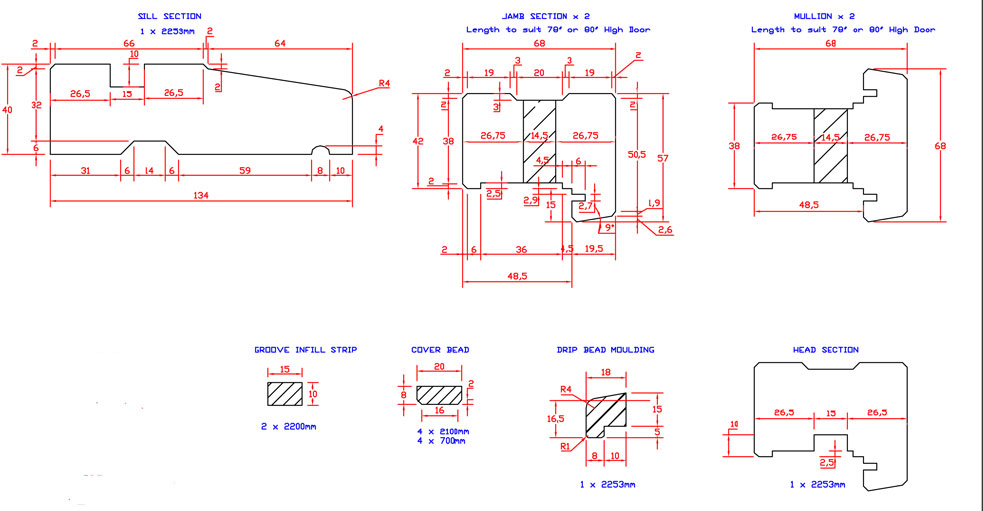

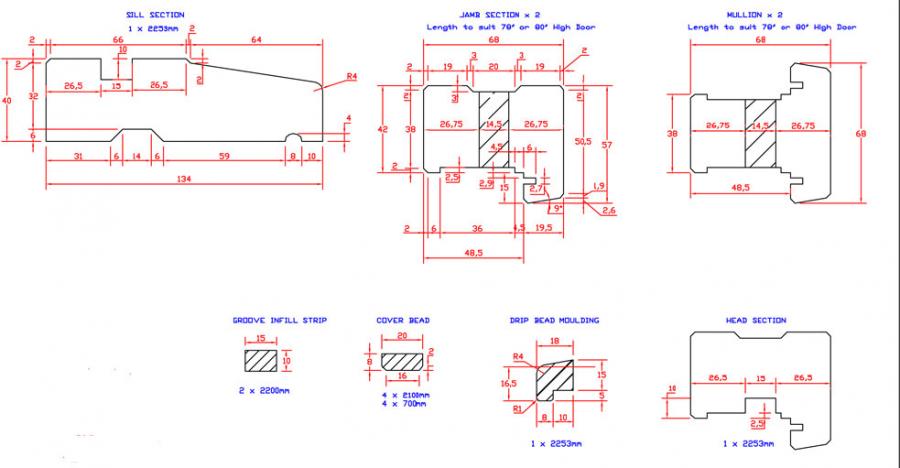

  • Contents:
    2 x rebated end jambs
    2 x rebated mullions

    1 x rebated header
    1 x cill
    1 x 5 metre Aquamac weather strip (for door only)
    1 x weather bar - for door

    2 x weather bars - for sidelights
  • You may also need:

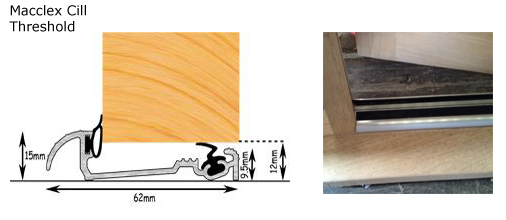

    Macclex cill threshold (sold separately)
    Additional Aquamac weather strip (sold separately)

Approx Overall Frame dimensions (NB: please purchase frame to confirm overall size before creating an opening)

78" x 30" door + 1 x 78" x 18" sidelight = 2067 (h) x 1351mm (w)
78" x 30" door + 2 x 78" x 18" sidelights = 2067 (h) x 1849mm (w)

78" x 30" door + 1 x 78" x 23" sidelight = 2067 (h) x 1478mm (w)
78" x 30" door + 2 x 78" x 23" sidelights = 2067 (h) x 2103mm (w)

78" x 33" door + 1 x 78" x 18" sidelight = 2067 (h) x 1427mm (w)
78" x 33" door + 2 x 78" x 18" sidelights = 2067 (h) x 1925mm (w)

78" x 33" door + 1 x 78" x 23" sidelight = 2067 (h) x 1554mm (w)
78" x 33" door + 2 x 78" x 23" sidelights = 2067 (h) x 2179mm (w)

80" x 32" door + 1 x 80" x 18" sidelight = 2118 (h) x 1402mm (w)
80" x 32" door + 2 x 80" x 18" sidelights = 2118 (h) x 1900mm (w)
80" x 32" door + 1 x 80" x 23" sidelights = 2118 (h) x 1529mm (w)
80" x 32" door + 2 x 80" x 23" sidelights = 2118 (h) x 2154mm (w)

78" x 36" door + 1 x 78" x 18" sidelight = 2067 (h) x 1504mm (w)
78" x 36" door + 2 x 78" x 18" sidelights = 2067 (h) x 2002mm (w)
78" x 36" door + 1 x 78" x 23" sidelight = 2067 (h) x 1631mm (w)
